Introduction: Quality as the Cornerstone of Refining Success
In refinery engineering, quality control isn’t a step — it’s the backbone of every successful project. From the smallest weld seam to the largest reactor vessel, precision defines not only safety and reliability but also the long-term profitability of a hydrotreater plant. Yet, achieving consistent quality across sprawling construction sites remains one of the industry’s biggest challenges.
Modular hydrotreater plants are transforming this paradigm. By shifting fabrication from chaotic job sites to controlled factory environments, they enable engineers to achieve unprecedented levels of precision, repeatability, and assurance. Each module is built, inspected, and tested under stringent conditions before it ever reaches the refinery.
This article explores how enhanced quality control forms the heart of modular hydrotreater design — through four key lenses:
- Factory-controlled environment – superior fabrication quality and consistency
- Pre-dispatch testing – performance verified before shipment
- Reduced rework – problems resolved early, not onsite
- Documentation integrity – complete records that guarantee compliance and confidence
Together, these principles redefine what “quality” means in hydrotreater engineering — transforming it from a process milestone into a continuous commitment.
1. Factory-Controlled Environment: Where Precision Becomes Standard
Traditional stick-built construction exposes every weld, joint, and alignment to the unpredictable elements of an open job site. Wind, dust, humidity, temperature swings, and limited access to skilled labor all contribute to inconsistent results. In contrast, modular hydrotreater plants are built in factory-controlled environments — specialized workshops equipped for high-precision fabrication.
Welding precision that endures
In a controlled shop, welding is executed under ideal conditions. The atmosphere is clean, humidity is regulated, and fixtures hold components perfectly in place. Advanced welding techniques — including automatic orbital welding and robotic TIG systems — ensure uniform penetration and strength. Each weld is traceable to the technician, the filler material batch, and even the calibration date of the equipment used.
For engineers, this means predictable structural integrity. Welds aren’t just inspected; they’re recorded, tagged, and documented in accordance with ASME and API standards. The result is a level of consistency impossible to guarantee in field conditions.
Superior assembly and finishing
Factory assembly eliminates the logistical challenges of site work — limited crane reach, poor visibility, or cramped layouts. Components are aligned with laser precision on shop floors, ensuring perfect mating between vessels, piping, and supports. Surface finishing processes such as sandblasting, coating, and painting are carried out in dust-free enclosures where curing temperatures are controlled.
This environment prevents common field issues like uneven coating thickness, moisture entrapment, or corrosion under paint. The outcome: longer equipment life and minimal maintenance intervention post-installation.
Skilled workforce and specialized tools
A permanent workforce of certified welders, inspectors, and fabricators operates in the workshop. Unlike transient site labor, these professionals are trained for repeatable excellence. The facility itself houses precision instruments — alignment lasers, ultrasonic gauges, digital torque wrenches — that enable dimensional accuracy far beyond what portable field tools can achieve.
Consistency that scales
Because every module is built under identical factory conditions, the quality achieved on one unit is replicated across all others. This uniformity is vital when assembling multi-module hydrotreaters where even a few millimeters of deviation can cause major fit-up problems onsite.
Simply put, a factory-controlled environment transforms hydrotreater construction from field improvisation into industrial-grade precision manufacturing.
2. Pre-Dispatch Testing: Assuring Performance Before Shipment
In traditional construction, many system tests are performed only after installation — when the plant is already on the clock and any failure triggers costly delays. Modularization changes this. Every module undergoes comprehensive pre-dispatch testing within the factory, allowing engineers to verify performance, detect defects, and correct issues long before delivery.
Hydrostatic and pressure testing
Each vessel, exchanger, and piping circuit is subjected to hydrostatic pressure tests that exceed normal operating pressures. This ensures that every joint, flange, and weld can safely withstand real-world conditions. Testing in a controlled environment provides superior accuracy because water temperature, pressure, and test durations are closely monitored using calibrated instruments.
Non-Destructive Testing (NDT) excellence
In-shop NDT techniques — ultrasonic testing, radiography, dye-penetrant, and magnetic-particle inspection — are applied systematically to critical welds and joints. Unlike field testing, where environmental noise and accessibility issues compromise accuracy, workshop NDT delivers cleaner readings and faster analysis. Each finding is logged digitally, generating a permanent record that follows the module through its lifecycle.
Leak and functional testing
Valves, instrumentation, and connections are tested for leaks under both pressure and vacuum conditions. Pneumatic testing detects even microscopic leaks that could lead to hydrocarbon emissions or system inefficiency. For control systems, instrumentation validation ensures sensors, transmitters, and safety interlocks function precisely as intended.
Simulated operational validation
Many modular workshops conduct dry-run simulations, connecting process instrumentation to mock control systems. This allows engineers to verify the functional logic of pumps, alarms, and safety interlocks before field integration. By validating automation sequences in advance, the risk of startup delays or unsafe conditions is dramatically reduced.
Benefits for project timelines
Pre-dispatch testing transforms commissioning from a trial-and-error process into a confirmation exercise. When the module arrives at site, engineers already know it performs to specification. Installation becomes primarily a matter of connecting utilities and controls, not discovering and fixing flaws. This compresses project schedules and increases confidence in hitting the first-oil milestone.
In short, pre-dispatch testing turns quality assurance into a proactive process — not a reactive one.
3. Reduced Rework: Solving Problems Before They Travel
Every engineer dreads rework. It consumes time, drains budgets, and damages morale. In conventional projects, rework is often triggered by discoveries made late in the construction phase — a misaligned flange, an incorrectly sized spool, or a faulty weld. Rectifying these at the refinery site can disrupt dozens of dependent activities and inflate costs exponentially.
Modular hydrotreater fabrication offers a powerful antidote: detect and correct early, in the shop, before shipment.
Detecting errors where correction is easy
Because modules are assembled and tested in the factory, quality inspectors can identify deviations immediately. Alignment issues, welding discontinuities, or component mismatches are corrected under optimal conditions, with the right tools and supervision on hand. Engineers have direct access to fabrication teams, enabling real-time feedback and resolution.
A one-hour correction in a workshop might prevent a one-week delay onsite — an exponential return on proactive quality control.
Minimizing field adjustments

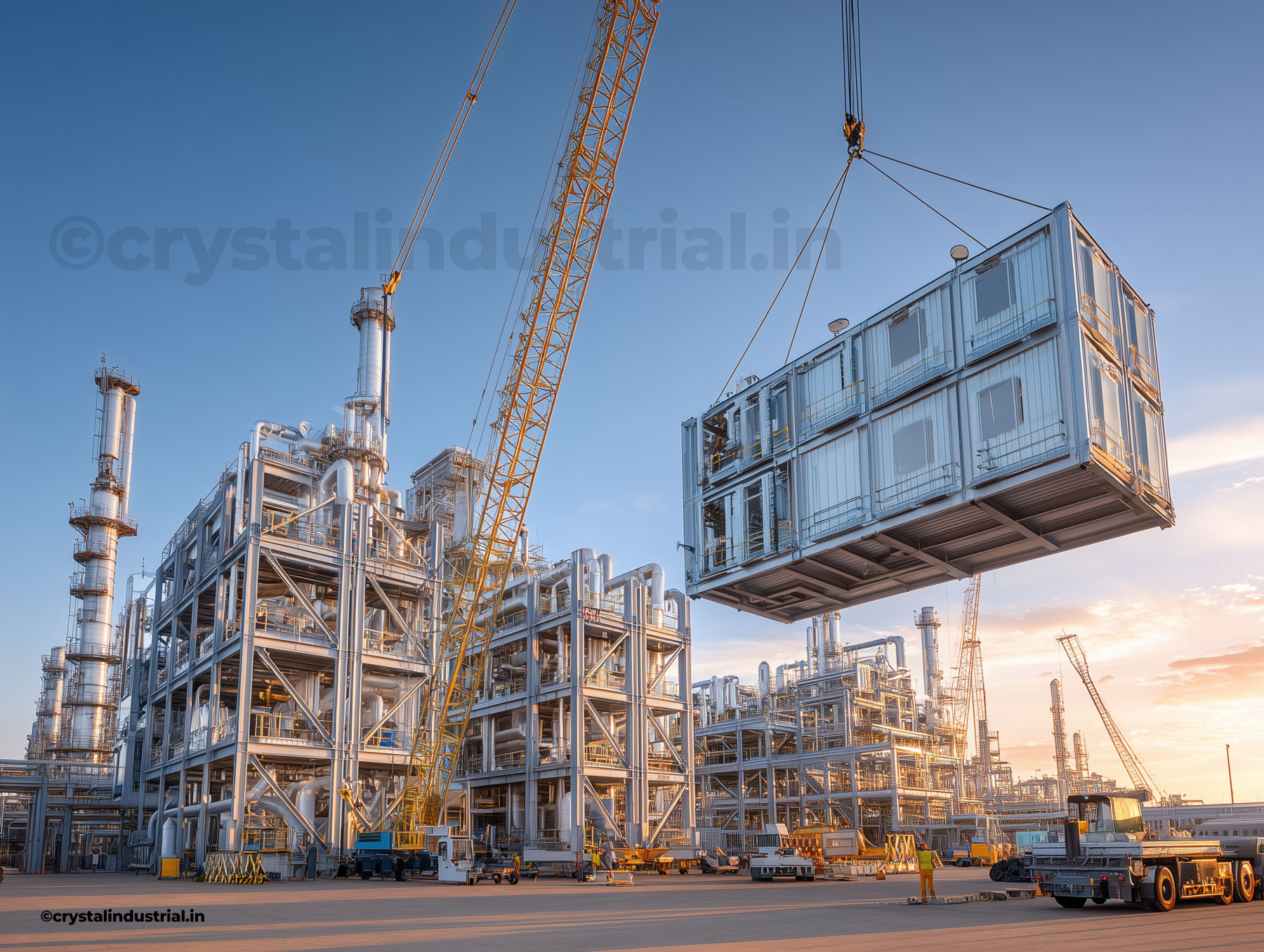

Each module arrives at the refinery as a finished, pre-tested unit. The interfaces between modules are standardized, ensuring that connections align perfectly during installation. This eliminates the need for field cutting, grinding, or hot-work adjustments — all of which introduce risk, cost, and schedule pressure.
Saving resources and preserving safety
Rework isn’t just expensive; it’s dangerous. Every additional weld or lift performed onsite adds to personnel exposure in a high-risk environment. By resolving issues early, modularization not only saves time and money but also enhances safety. Fewer last-minute site interventions mean fewer permits, less hot-work, and a smaller crew footprint in hazardous zones.
Predictable budgets and schedules
From a project management perspective, reduced rework translates into predictable performance metrics. Time-and-cost overruns shrink, allowing engineers and project owners to plan more accurately. This predictability strengthens stakeholder confidence and creates a culture of disciplined execution — where every task is completed right the first time.
In the world of refinery projects, rework is a silent profit killer. Modularization stops it at the source.
4. Documentation Integrity: Traceability You Can Trust
Quality control is not just about performing tests — it’s about proving that those tests were done correctly and consistently. Documentation provides that proof. In modular hydrotreater plants, documentation integrity is treated as an engineering deliverable in its own right, ensuring that every weld, test, and inspection is traceable.
Complete quality dossiers
Each module is accompanied by a comprehensive documentation package, often called a Quality Dossier or Manufacturing Data Record (MDR). It includes welding procedure specifications (WPS), welder qualification records, inspection reports, test certificates, calibration logs, material traceability charts, and non-destructive examination results.
For engineers, this documentation provides assurance that every stage of fabrication complies with applicable standards and client specifications. It also simplifies the work of regulators and third-party inspectors during audits.
Digital traceability and automation
Modern fabrication facilities like Crystal Industrial’s employ digital quality management systems that track each component through barcodes or RFID tags. Test results are logged electronically, creating a tamper-proof audit trail. Engineers can retrieve the history of a single weld — who performed it, what filler metal was used, what tests were conducted, and what the results were — within seconds.
This digital backbone eliminates the guesswork that often plagues paper-based systems and enhances accountability throughout the project lifecycle.
Simplified handover and future maintenance
When the plant is finally commissioned, all documentation is delivered in an organized digital format. Operations and maintenance teams inherit a complete technical record of the modules, enabling faster troubleshooting, simplified spare-part management, and easier integration of future upgrades.
If a replacement part is required years later, engineers can trace the original specification and test results instantly — ensuring replacements meet the same quality standards.
Strengthening client and regulatory confidence
Comprehensive documentation also builds trust with clients and authorities. It demonstrates that quality isn’t an assumption; it’s verified and recorded. For global projects that must satisfy multiple certification agencies, this transparency accelerates final acceptance and eliminates costly re-inspections.
In short, documentation integrity converts quality assurance from a paper-chase into a living, verifiable system of accountability.
The Bigger Picture: Quality Control as a Competitive Advantage
The cumulative effect of these four principles — factory control, pre-dispatch testing, rework reduction, and documentation integrity — is profound. Together, they transform quality control from a reactive function into a strategic differentiator.
For engineers, this means fewer unknowns, clearer timelines, and higher confidence in every project milestone. For project owners, it means reduced lifecycle costs, faster commissioning, and greater assurance of safety and reliability.
Moreover, the quality achieved during modular fabrication carries forward into plant operations. Equipment that is precisely fabricated and thoroughly tested experiences fewer breakdowns and longer maintenance intervals. This translates into higher uptime and better return on investment — the ultimate measure of refinery performance.
As refineries transition toward cleaner fuels and bio-based feedstocks, the operational demands on hydrotreaters will only increase. The ability to ensure consistent quality from fabrication through to operation isn’t optional — it’s mission-critical. Modularization gives engineers that control.
Conclusion: Building Confidence, One Module at a Time
Quality is not an abstract goal — it’s a measurable outcome. Modular hydrotreater plants achieve that outcome by embedding quality control into every step of design, fabrication, and delivery.
By operating in factory-controlled environments, engineers eliminate the uncertainties of site work. Through rigorous pre-dispatch testing, they verify performance before the first bolt is tightened. By reducing rework, they save time, cost, and lives. And through documentation integrity, they preserve a transparent, auditable trail of excellence that endures throughout the plant’s life.
These are not isolated benefits — they reinforce one another, forming a continuous chain of quality assurance that stretches from blueprint to operation. For the modern refinery, this approach doesn’t just raise standards; it redefines them.
